AS 915 Sherpa 2WD

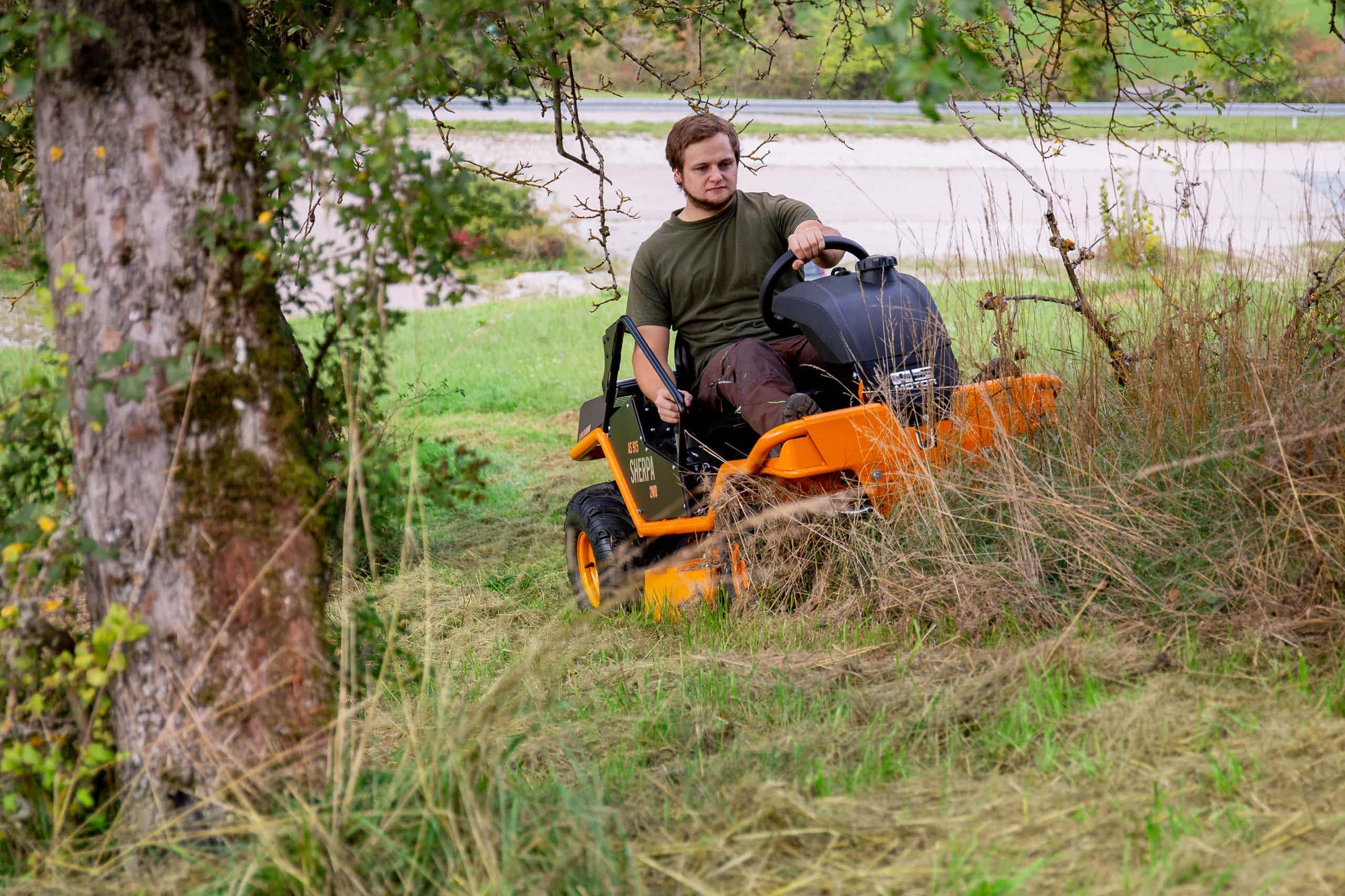

Entrer the Sherpa family: Ergonomic workstation meets agile ride-on mower

Take your place in the Sherpa class. Surfing mower deck, cross-blade system, perimeter tubular frame and one-hand lever operation are advantages of our AS 915 Sherpa 2WD. The all-rounder for ambitious private users or professional use.

Robust engine and comfortable traction drive

The AS 915 Sherpa 2WD is powered by a professional Loncin two-cylinder engine. With its 708 cm³, the engine produces 21.2 hp and is also equipped with an oil and fuel pump. Variable traction drive occurs via hydrostatic transmission. Forward speeds from 0-10.5 km/h and reverse speeds from 0-8.2 km/h can be selected via one-hand operation. Another advantage: a mechanical parking brake is integrated in the drive lever. The limited slip differential can be engaged at any time for additional traction.

Closed, surfing mower deck

Equipped with a cross-blade system and a closed mower deck the AS 915 2WD Sherpa reliably chops growth up to 1.2 m high. Surfing suspension allows the mower deck to adapt to uneven soil and thus protects blades and turf, when driving over a hilltop for example. Cutting height is adjusted centrally in levels ranging from 50-105 mm.

Sitting "in" the machine

A deep sitting position gives the operator the feeling of sitting in, rather than on, the machine. This position protects the user from undergrowth, for example. The bucket seat is adjustable in length which, combined with plenty of legroom, provides space for operators up to 1.9 m tall. A spring seat package is available for even greater comfort. All operating elements are arranged logically and can be easily reached.

New model year 2024

In the future, the 2WD models of the Sherpa series will appear in new splendor. Visually, the new Sherpa models are even more attractive with a new paint finish, an additional front panel and the newly designed decals. But the legendary tallgrass mowers also offer a number of technical innovations.

In addition to more volume (17 liters), the Sherpas’ new fuel tank offers a larger tank opening and a level indicator as standard. The protective cloth between the engine and seat can now be easily opened for service activities using a magnetic catch. Accessibility to the engine, for example when changing the oil, is significantly improved.

Product advantages

Surfing mulch-mower deck

Closed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.

Excellent driving comfort through an ergonomic sitting position (AS 915)

The length-adjustable driver seat and the ergonomic sitting position enable comfortable work over a longer period of time, even for large persons.

Small turning radius, high work rate

The turning radius of just 65 cm provides agility even on difficult terrain.

Stable tube frame

High stability and torsional rigidity with heavy load.

Terrain with moderate inclines

Performs on moderate inclines thanks to a low weight and low centre of gravity.

Variable hydrostatic transmission (ride-on mower)

Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.

Product details

AS mulching mower deck

Closed, surfing mower deck with cross-blade system and bearing-supported blades that yield to obstacles.

Maintenance-friendly

Easy access to oil dipstick and air filter.

Switchable limited slip differential

Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.

Narrow turning radius

Oscillating front axle for extremely agile operation and a turning radius of just 65 cm.

Technical Data

cutting width 90 cm
engine manufacturer Loncin
engine designation LC2P77F
4-stroke engine, 1-cyl. / 2-cyl. /
displacement 708 cm³
maximum power 16,0/21,7 kW (hp)
rated power 15,6/21,2 kW (hp)
rated speed 3400 rpm
drive, 2WD rear / 4WD permanent /
drive, variable hydrostatic transmission
max. speed 10,5 km/h
limited-slip differential
automatic parking brake
mono-blade / cross-blade / Y-flails / /
side discharge / rear discharge /
closed mower deck
surfing mower deck
cutting height 50 - 105 mm
tank capacity 17 l
seat spring package, standard / optional /
dimension L/W/H 191x98x100 cm
weight 274 kg
Changes in technology, equipment and price are reserved. Of information or illustrations no claims can be derived.

Accessories

Insect scare device

Scares insects and small animals away from the mower. Three times more insects can flee in time. With respective adapters suitable for AS 62/63, AS 701/901, AS Sherpa and AS YAK.

More information »

Trailer

Cargo area: L = 1071 mm, W = 607 mm, panel height: 274 mm. Permissible total weight: 100 kg. Rear panel can be removed.

Trailer hitch (Sherpa)

For connecting the AS trailer.

Snow blade

Width: 1107 mm, height: 348 mm. Adjustable on both sides.

Mulch kit (Sherpa)

For even finer mulching and more uniform cutting results on lawns with grass up to 40 cm high.

Snow chains

Cross-track chain for the drive wheels.

Seat suspension kit (AS 915)

Seat suspension with improved progressive suspension, reinforced gas pressure damper and new end stop. Adjustable from 60-120 kg.

Twin wheels (Sherpa)(Old)

One pair (2x2) of rear twin tyres with extreme tread pattern for highest traction.

Tilt meter

Convenient display of slope incline.

Steering knob

Facilitates one-handed steering and maoeuvring on level terrain.

Liquide tyre sealant “Plattfuss-Stop”

Reduces the failure times due to flat tyres (950ml)

More information »

Liquide tyre sealant “Plattfuss-Stop”

Reduces the failure times due to flat tyres (20 litres); can only be used in conjunction with the pump

More information »

Pump for tyre sealant

For filling the tyre sealant "Plattfuss-Stop"; only necessary in conjunction with 20 l container

Spacer Sherpa

Spacer for replacing the upper mulching blade. Advantageous in fibrous vegetation or for higher mowing speed in dense vegetation.
