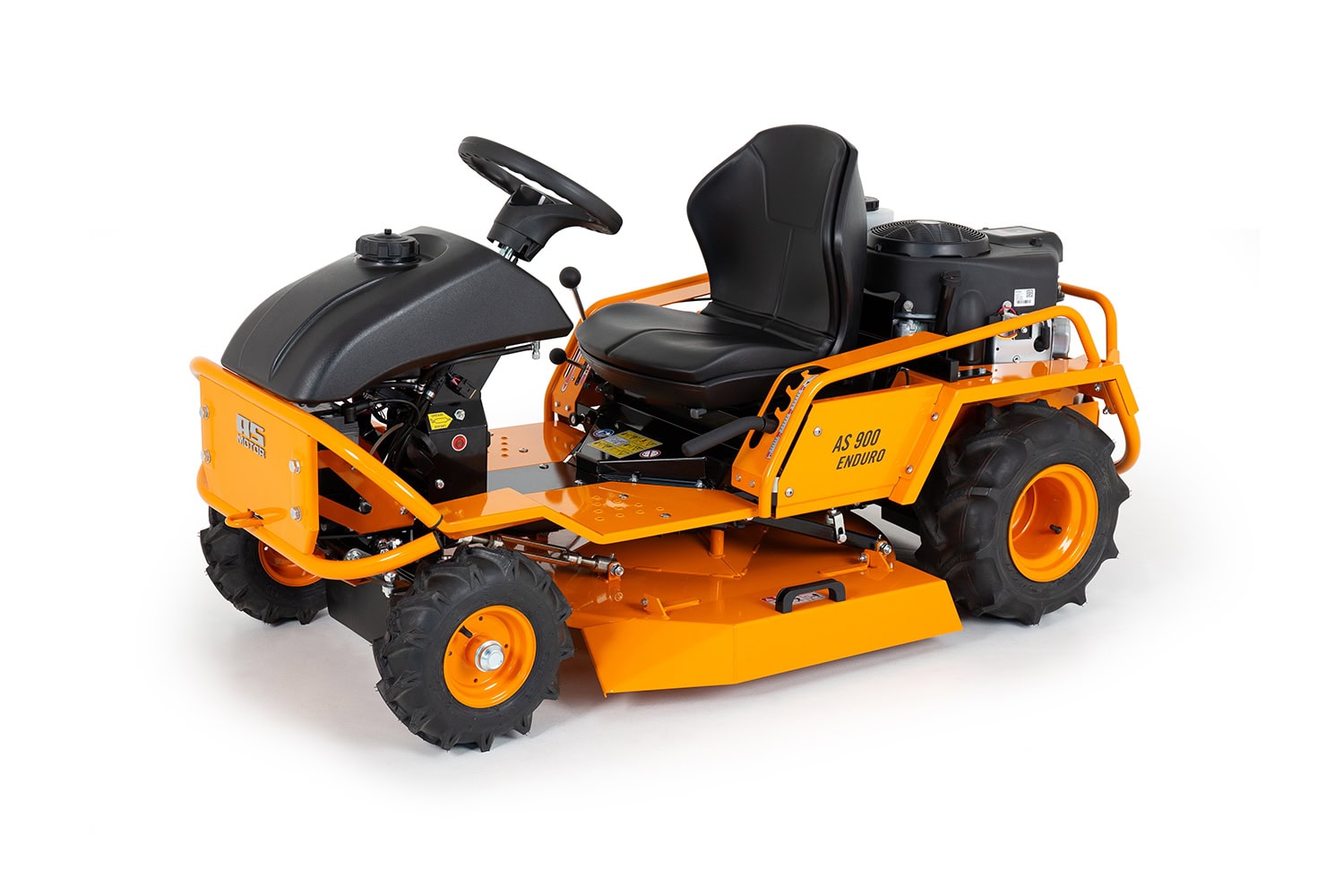

AS 900 Enduro

A robust and reliable ride-on mower for high grass with side discharge

Strong and extremely robust, the AS 900 Enduro is ideally suited for mature undergrowth and grass up to 1.2 m high. The hydrostatic drive has a large cooling system for permanent professional use. Solid frame construction guarantees a long service life.

Powerful engine and reliable propulsion

The 656 cm³ two-cylinder Series 7 Intek engine from Briggs & Stratton delivers up to 16.2 hp. The AS 900 Enduro is also equipped for work on slopes thanks to a fuel and oil pump. The drive lever conveniently adjusts speed, between 0-10.8 km/h in forward and 0-7.0 km/h in reverse. In addition the hydrostatic transmission is equipped with a supplemental cooling unit so that the mower performs even under difficult conditions. The limited slip differential can be engaged via foot pedal for even better traction.

Impressive mowing speed through side discharge

The blade bar fitted with replaceable and reversible double-sided blades distributes mown grass to the side and to the rear. Thus growth heights up to 1.2 m are handled effortlessly. A 90 cm cutting width enables work rates up to 9000 m² per hour. The four cutting heights from 50-90 mm can be centrally adjusted.

Ergonomic sitting position for comfortable work

Legroom and easy-motion steering ensure fatigue-free work. An optional seat spring package increases comfort further. Thanks to the adjustable length seat, every driver will find adequate space and the optimal sitting position. Ergonomic reachability of all operating elements round out the whole package.

Product advantages

Professional wheel drive

Supplemental cooling equips the traction drive for continuous operation, even in difficult conditions.

Comfortable sitting position

Easy steering and ample leg-room thanks to the adjustable-length seat ensure fatigue-free work.

Optimal all-terrain mobility

Field stud tyres, switchable limited slip differential and an engine suitable for slopes ensure powerful traction on difficult terrain.

Blade system with reversible double-sided blades

Reversible double-sided blades automatically fold to the rear protecting them in the event of unseen objects.

Product details

Blade system

Flexible, bearing-supported mower deck with replaceable blades, side discharge and solenoid blade clutch.

Switchable limited slip differential

Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.

Engine suitable for slopes

Extra oil and fuel pump, oil pressure switch and air cooling system protect the engine in harsh conditions.

Bumper

Stable bumper protects axles and wheel suspension.

Technical Data

cutting width 90 cm
engine manufacturer B&S
engine designation Series 7 Intek
4-stroke engine, 1-cyl. / 2-cyl. /
displacement 656 cm³
maximum power 11,9/16,2 kW (hp)
rated power 11,1/15,1 kW (hp)
rated speed 3300 rpm
drive, 2WD rear / 4WD permanent /
drive, variable hydrostatic transmission
max. speed 10 km/h
limited-slip differential
mono-blade / cross-blade / Y-flails / /
side discharge / rear discharge /
cutting height 50 - 90 mm
tank capacity 15 l
seat spring package, standard / optional /
dimension L/W/H 183x100x95 cm
weight 298 kg
Changes in technology, equipment and price are reserved. Of information or illustrations no claims can be derived.

Accessories

Trailer

Cargo area: L = 1071 mm, W = 607 mm, panel height: 274 mm. Permissible total weight: 100 kg. Rear panel can be removed.

Trailer hitch (AS 900)

For connecting the AS trailer.

Snow blade

Width: 1107 mm, height: 348 mm. Adjustable on both sides.

Snow chains

Cross-track chain for the drive wheels.

Tilt meter

Convenient display of slope incline.

Steering knob

Facilitates one-handed steering and maoeuvring on level terrain.

Liquide tyre sealant “Plattfuss-Stop”

Reduces the failure times due to flat tyres (950ml)

More information »

Liquide tyre sealant “Plattfuss-Stop”

Reduces the failure times due to flat tyres (20 litres); can only be used in conjunction with the pump

More information »

Pump for tyre sealant

For filling the tyre sealant "Plattfuss-Stop"; only necessary in conjunction with 20 l container

Seat suspension kit (AS 799, 800, 900)

Seat suspension with improved progressive suspension, reinforced gas pressure damper and new end stop. Adjustable from 60-120 kg.
