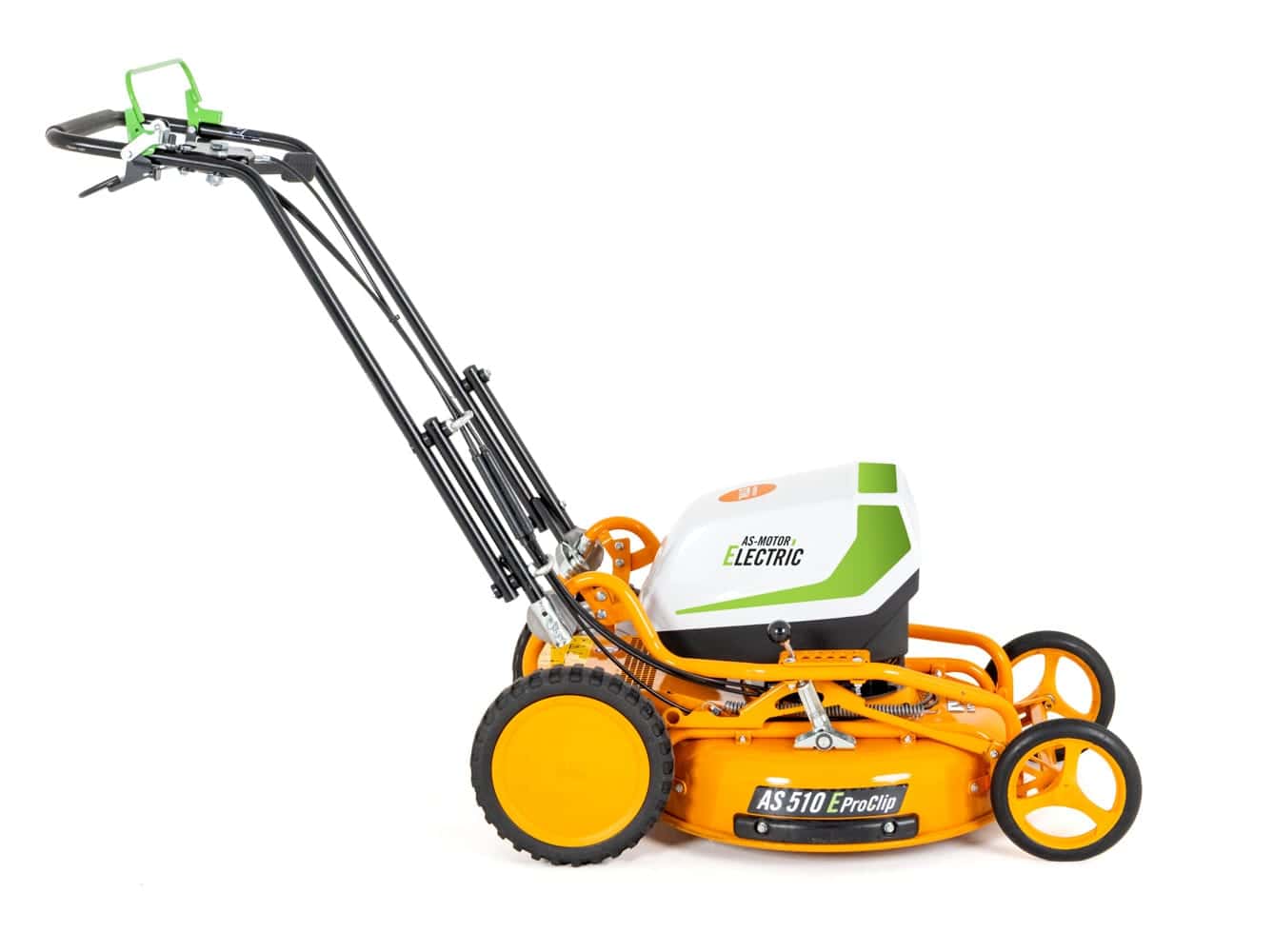

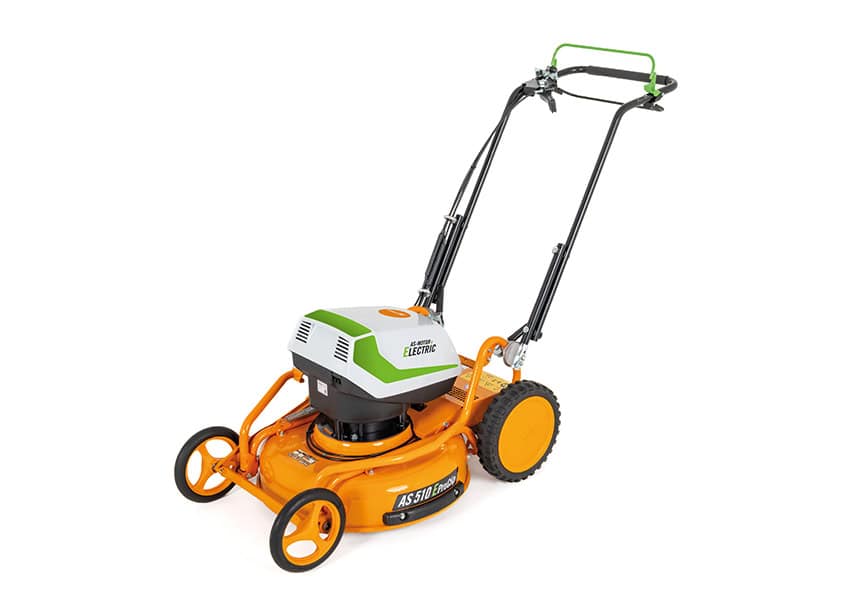

AS 510 E-ProClip A AP: professional battery-powered mulching mower for demanding lawn care

The AS 510 E-ProClip A AP is built for professional users who demand high performance and a clean cut but want to avoid local emissions, unnecessary engine noise and the maintenance required by a petrol mower.

Two batteries from the STIHL AP-System work together as a 72-volt system. The maximum power output is 2.93 kW. This ensures that the battery-powered mulching mower remains capable even with denser grass and delivers a clean result on areas that require regular maintenance.

Efficient mulching instead of grass disposal

The deep-formed mulching deck and the matched blade shred the grass clippings multiple times. The fine material falls back into the turf. Collecting, transporting and disposing of clippings is no longer necessary.

With a 51 cm cutting width and a coverage capacity of up to 2,000 m² per hour, the AS 510 E-ProClip A AP is suitable for medium and large lawns in municipalities, landscaping and commercial property maintenance.

The central cutting height adjustment ranges from 40 to 90 mm.

Quieter operation without sacrificing performance

The battery drive operates more quietly than a comparable petrol mower and produces no local emissions. This offers advantages in residential areas, schools, daycare centres, hospitals or office buildings – anywhere where noise and emissions could restrict use.

For the operator, the working day also becomes noticeably more comfortable. Hand-arm vibrations are reduced, the motor starts at the push of a button, and typical maintenance tasks such as oil or spark plug changes are eliminated.

Consistent blade performance with varying vegetation

An electric motor provides its torque immediately. In the AS 510 E-ProClip A AP, the power is adjusted to the current load, ensuring that the blade speed remains stable even in denser grass.

This directly benefits the cutting result. Instead of dropping significantly under load, the drive maintains the working performance as consistently as possible across the mowing path.

Designed for professional daily use

A battery alone does not make a professional lawn mower. The cutting deck, bearings, drive and protection mechanisms are what matter.

The AS 510 E-ProClip A AP therefore adopts key design features from the proven AS-Motor professional mowers. A third motor shaft bearing and a slip clutch on the mulching blade protect the drive if the blade hits stones, branches or other foreign objects.

The mechanical gearbox is also retained. It reliably transfers power to the large rear wheels and ensures the necessary traction in daily use.

Variomatic for the right working pace

The travel speed can be adjusted continuously between 1.8 and 3.9 km/h. Slower for dense vegetation, faster on open areas.

This means the machine does not dictate the pace – the application does.

Easy battery change in the STIHL AP-System

The two batteries are easily accessible behind the motor and can be removed without tools. Approved batteries from the STIHL AP-System can therefore be used flexibly across different machines.

At AS-Motor, this applies not only to the AS 510 E-ProClip A AP but also to the weed brushes AS 30 E-WeedHex AP and AS 60 E-WeedHex AP. One battery system thus covers both professional lawn care and mechanical weed removal.

Fewer different batteries, fewer chargers, fewer system breaks in the fleet.

Balanced when turning and transporting

The position of the batteries improves weight distribution. This makes lifting, turning and manoeuvring easier, especially at the edges of areas or when loading.

The guide bar can be folded in using a quick-release mechanism. Without batteries, the mower weighs approximately 44 kg.

Availability

The AS 30 E-WeedHex AP, AS 60 E-WeedHex AP and AS 510 E-ProClip A AP will be available from the 2027 season through authorised AS-Motor specialist dealers.

Further information on the new models, system compatibility and market launch will be published before the start of sales.

Product benefits

Low-noise, low-emissions work

Thanks to battery power the device can be used in areas that are sensitive to noise and emissions.

Professional Battery Power

The 72 V system with two AllPro AP batteries delivers up to 2.93 kW of power for demanding professional applications.

Short Charging Times

Compatible fast chargers can fully recharge selected AllPro AP batteries in approximately 20 minutes.

Quick Battery Replacement

Easily accessible batteries can be removed directly from the machine and replaced with minimal downtime.

Up to 674 Wh of Energy Capacity

Two AP 500 S batteries provide up to 674 Wh of energy for extended operating time.

Up to 30% time saved

No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Traction drive (AS 510)

Comfortable work through variable adjustable speed (variator) in conjunction with large, aggressive tread drive wheels for optimal traction.

Product details

product-image

Change batteries, use power flexibly

The AP batteries are directly accessible and can be changed quickly as needed. The STIHL Powerhead reliably supplies AS-Motor ELECTRIC machines with energy.

product-image

Battery compatibility in the AP-System

The AP-System covers a wide range of professional applications, from brush cutters and hedge trimmers to blowers, chainsaws and other machines for green space maintenance. The advantage: one battery system can be used for different machines and applications, provided the respective machine is approved for the AP-System.

product-image

Stable mulching bell

Closed, stable and deep mulching bell for the best mulching results.

product-image

Special front wheels

The double ball-bearing, low-friction wheels press as little grass as possible downwards, ensuring everything is cut.

product-image

STIHL AP-System

The high-performance battery devices of the AP-System were developed for professional use in landscaping, gardening and tree care.

product-image

Charging and energy management

STIHL’s innovative charging and energy management ensures sufficient battery capacity. This means you can also charge your batteries on the go and have fully charged batteries for every use.

Warranty

At AS-Motor, we understand that professional users, municipalities, and property owners need more than just high-performance mowing technology – they need confidence in their investment. That’s why we go beyond industry norms to offer a warranty system that sets new standards in the landscaping sector.

Technical Data

cutting width 51 cm
maximum grass height "mulching" 20 cm
engine manufacturer AS-Motor
engine type AS-Motor Electric
rated voltage 50 V
maximum voltage 56 V
third crankshaft beariing for engine protection
100% mulching function
cutting height 40 - 90 mm
central cutting height adjustment
cutting height adjustment: levels 5
rear-wheel drive
Number of speeds Vario
speed max. 4 km/h
Handlebar height adjustment
Dimension L/W/H 139x55x100 cm
weight 43 kg
Sound pressure level at the operating position 77,8 dB
Changes in technology, equipment and price are reserved. Of information or illustrations no claims can be derived.

Accessories

product-image

Tilt meter

Convenient display of slope incline.
